Lock-out Safety Sanitary Clamp

Safety Sanitary Clamp – Series Lockout

Stainless Sanitary Fittings – Lock-Out Clamp Assures Limited Access to Pipeline

Locking stainless sanitary fittings and safety clamp designed to increase the safety of high temperature piping lines associated with steam and cleaning processes.

Sanitary Fittings Best Practices

Buy Now

Safety Sanitary Clamp, Series Lockout how to use it

Datasheet - Lock-Out Stainless Sanitary FittingsDownload LJ Star Clamp Nut Torque GuideDownload How to Follow Sanitary Clamp Best Practices - TutorialWatch Video FAQ: 10 Common Sanitary Fittings QuestionsDownload White Paper: How to Eliminate Clamp GallingDownload LJ Star now offers the Safety Clamp with the introduction of a Shroud and Lock-Out featureRead

L.J. Star Incorporated now offers varying styles of the Safety Clamp with the introduction of the Shrouded Safety Clamp and Lock-Out Safety Clamp for stainless sanitary fittings. Both variations are designed to further increase the safety of hazardous high temperature piping and vessels often associated with steam and CIP / SIP cleaning processes. These clamps are also used for critical process media.

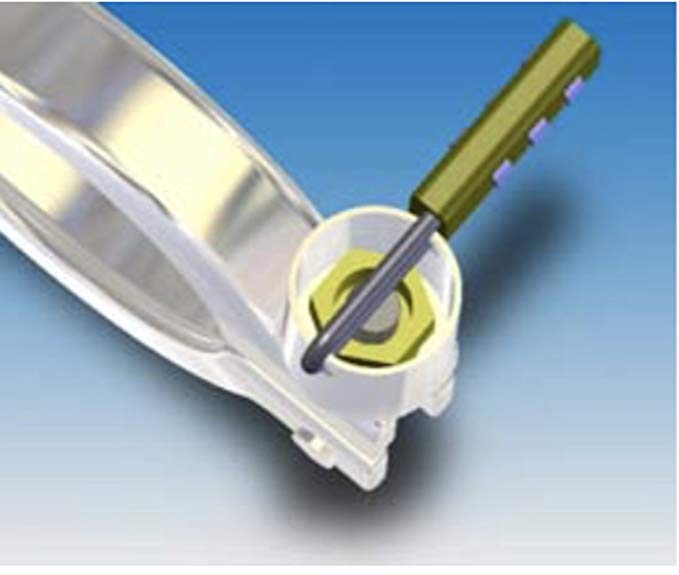

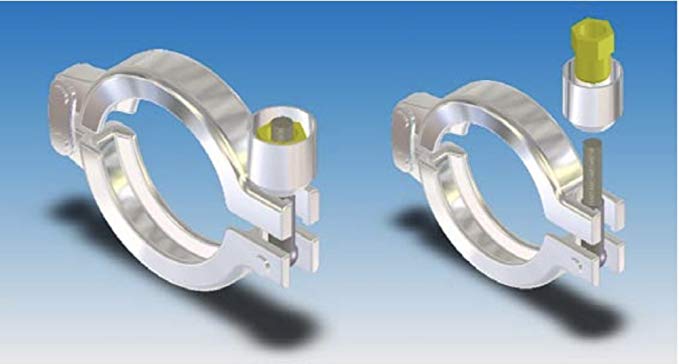

The Shrouded Safety Clamp is based around the design principal of the standard SH Safety Clamp. This new variation benefits from the added safety feature of a domed nut replacing the wing-nut. Using the domed nut guarantees the clamp cannot be loosened by hand, this coupled with the added security of the free rotating nut, the shroud ensures the clamp can only be released using the correct socket adapter, alleviating problems where the piping can easily be tampered with or accidentally released.

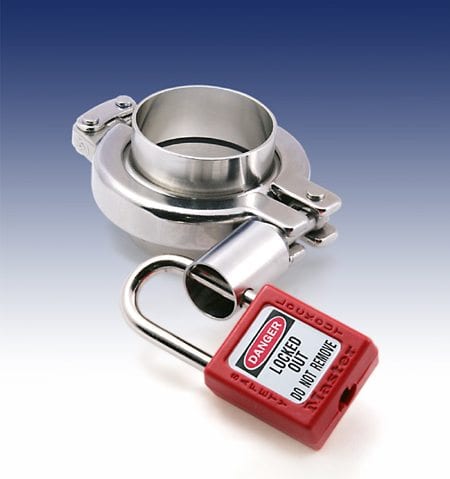

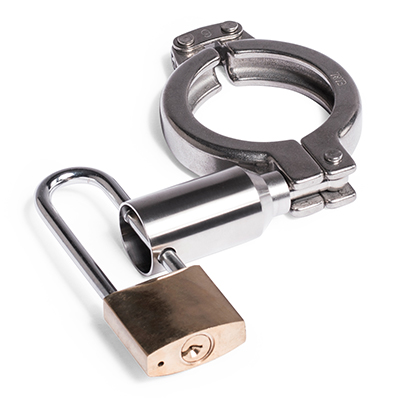

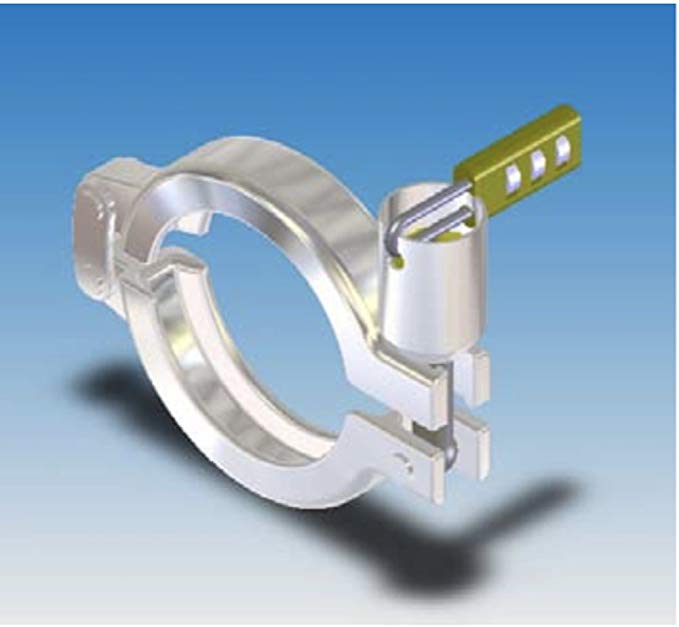

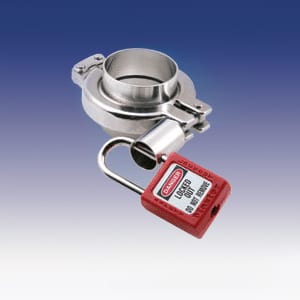

The Lock-Out Safety Clamp for stainless sanitary fittings is an advanced version of the shrouded safety clamp, the wingnut has again been replaced with a shrouded domed nut, the shroud however is extended in length and modified to accept a number coded or key operated padlock. Once the clamp has been assembled, the padlock’s shackle can be passed through the holes in the shroud stopping the hexagon head of the nut from being accessed and loosened by a spanner or socket set. The Lock-Out safety clamp ensures the process system can only be accessed by authorized personnel..
